Arrays and Images
Converting images using java
import java.awt.Color;
import java.awt.image.BufferedImage;
import java.awt.Image;
import java.awt.Graphics2D;
import java.io.File;
import java.io.FileWriter;
import java.io.IOException;
import java.io.PrintWriter;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import javax.imageio.stream.ImageOutputStream;
import javax.imageio.stream.ImageInputStream;
import javax.imageio.metadata.IIOMetadata;
import javax.imageio.IIOImage;
import javax.imageio.ImageIO;
import javax.imageio.ImageWriteParam;
import javax.imageio.ImageWriter;
import javax.imageio.ImageReader;
import javax.imageio.ImageTypeSpecifier;
public class Pics {
private final String inDir = "images/"; // location of images
private final String outDir = "images/tmp/"; // location of created files
private final String greyDir = "images/tmp/greyscale/";
private final String redDir = "images/tmp/red/";
private final String blueDir = "images/tmp/blue/";
private final String greenDir = "images/tmp/green/";
private String inFile;
private String resizedFile;
private String redFile; private String greenFile; private String blueFile;
private String greyscaleFile;
private String asciiFile;
private String ext; // extension of file
private long bytes;
private int width;
private int height;
// Constructor obtains attributes of picture
public Pics(String name, String ext) {
this.ext = ext;
this.inFile = this.inDir + name + "." + ext;
this.resizedFile = this.outDir + name + "." + ext;
this.greyscaleFile = this.greyDir + name + "_grey" + "." + ext;
this.redFile = this.redDir + name + "_red" + "." + ext;
this.blueFile = this.blueDir + name + "_blue" + "." + ext;
this.greenFile = this.greenDir + name + "_green" + "." + ext;
this.asciiFile = this.outDir + name + ".txt";
this.setStats();
}
// An image contains metadata, namely size, width, and height
public void setStats() {
BufferedImage img;
try {
Path path = Paths.get(this.inFile);
this.bytes = Files.size(path);
img = ImageIO.read(new File(this.inFile));
this.width = img.getWidth();
this.height = img.getHeight();
} catch (IOException e) {
}
}
// Console print of data
public void printStats(String msg) {
System.out.println(msg + ": " + this.bytes + " " + this.width + "x" + this.height + " " + this.inFile);
}
// Convert scaled image into buffered image
public static BufferedImage convertToBufferedImage(Image img) {
// Create a buffered image with transparency
BufferedImage bi = new BufferedImage(
img.getWidth(null), img.getHeight(null),
BufferedImage.TYPE_INT_ARGB);
// magic?
Graphics2D graphics2D = bi.createGraphics();
graphics2D.drawImage(img, 0, 0, null);
graphics2D.dispose();
return bi;
}
// Scale or reduce to "scale" percentage provided
public void resize(int scale) {
BufferedImage img = null;
Image resizedImg = null;
int width = (int) (this.width * (scale/100.0) + 0.5);
int height = (int) (this.height * (scale/100.0) + 0.5);
try {
// read an image to BufferedImage for processing
img = ImageIO.read(new File(this.inFile)); // set buffer of image data
// create a new BufferedImage for drawing
resizedImg = img.getScaledInstance(width, height, Image.SCALE_SMOOTH);
} catch (IOException e) {
return;
}
try {
ImageIO.write(convertToBufferedImage(resizedImg), this.ext, new File(resizedFile));
} catch (IOException e) {
return;
}
this.inFile = this.resizedFile; // use scaled file vs original file in Class
this.setStats();
}
public void greyscale() {
BufferedImage img = null;
BufferedImage greyImg = null;
try {
// read an image to BufferedImage for processing
img = ImageIO.read(new File(this.inFile)); // set buffer of image data
greyImg = img;
// create a new BufferedImage for drawing
for (int i = 0; i < img.getHeight(); i++) {
for (int j = 0; j < img.getWidth(); j++) {
Color co = new Color(img.getRGB(j, i));
int red = (int) (co.getRed() * 0.299);
int green = (int) (co.getGreen() * 0.587);
int blue = (int) (co.getBlue() * 0.114);
int total = red + green + blue;
Color newColor = new Color(
total, total, total
);
greyImg.setRGB(j, i, newColor.getRGB());
}
}
} catch (IOException e) {
return;
}
try {
ImageIO.write(convertToBufferedImage(greyImg), this.ext, new File(greyscaleFile));
} catch (IOException e) {
return;
}
this.inFile = this.greyscaleFile; // use scaled file vs original file in Class
this.setStats();
}
public void redscale() {
BufferedImage img = null;
BufferedImage redImg = null;
try {
// read an image to BufferedImage for processing
img = ImageIO.read(new File(this.inFile)); // set buffer of image data
redImg = img;
// create a new BufferedImage for drawing
for (int i = 0; i < img.getHeight(); i++) {
for (int j = 0; j < img.getWidth(); j++) {
Color co = new Color(img.getRGB(j, i));
int red = (int) co.getRed();
int green = 0;
int blue = 0;
Color newColor = new Color(
red,
green,
blue);
redImg.setRGB(j, i, newColor.getRGB());
}
}
} catch (IOException e) {
return;
}
try {
ImageIO.write(convertToBufferedImage(redImg), this.ext, new File(redFile));
} catch (IOException e) {
return;
}
this.inFile = this.redFile; // use scaled file vs original file in Class
this.setStats();
}
public void greenscale() {
BufferedImage img = null;
BufferedImage greenImg = null;
try {
// read an image to BufferedImage for processing
img = ImageIO.read(new File(this.inFile)); // set buffer of image data
greenImg = img;
// create a new BufferedImage for drawing
for (int i = 0; i < img.getHeight(); i++) {
for (int j = 0; j < img.getWidth(); j++) {
Color co = new Color(img.getRGB(j, i));
int red = 0;
int green = (int) co.getGreen();
int blue = 0;
Color newColor = new Color(
red,
green,
blue);
greenImg.setRGB(j, i, newColor.getRGB());
}
}
} catch (IOException e) {
return;
}
try {
ImageIO.write(convertToBufferedImage(greenImg), this.ext, new File(greenFile));
} catch (IOException e) {
return;
}
this.inFile = this.greenFile; // use scaled file vs original file in Class
this.setStats();
}
public void bluescale() {
BufferedImage img = null;
BufferedImage blueImg = null;
try {
// read an image to BufferedImage for processing
img = ImageIO.read(new File(this.inFile)); // set buffer of image data
blueImg = img;
// create a new BufferedImage for drawing
for (int i = 0; i < img.getHeight(); i++) {
for (int j = 0; j < img.getWidth(); j++) {
Color co = new Color(img.getRGB(j, i));
int red = (int) (co.getRed() * 0.299);
int green = (int) (co.getGreen() * 0.587);
int blue = (int) (co.getBlue() * 0.114);
int total = red + green + blue;
Color newColor = new Color(0, 0, total);
blueImg.setRGB(j, i, newColor.getRGB());
}
}
} catch (IOException e) {
return;
}
try {
ImageIO.write(convertToBufferedImage(blueImg), this.ext, new File(blueFile));
} catch (IOException e) {
return;
}
this.inFile = this.blueFile; // use scaled file vs original file in Class
this.setStats();
}
// convert every pixel to an ascii character (ratio does not seem correct)
public void convertToAscii() {
BufferedImage img = null;
PrintWriter asciiPrt = null;
FileWriter asciiWrt = null;
try {
File file = new File(this.asciiFile);
Files.deleteIfExists(file.toPath());
} catch (IOException e) {
System.out.println("Delete File error: " + e);
}
try {
asciiPrt = new PrintWriter(asciiWrt = new FileWriter(this.asciiFile, true));
} catch (IOException e) {
System.out.println("ASCII out file create error: " + e);
}
try {
img = ImageIO.read(new File(this.inFile));
} catch (IOException e) {
}
for (int i = 0; i < img.getHeight(); i++) {
if (i % 2 != 0) {
for (int j = 0; j < img.getWidth(); j++) {
Color col = new Color(img.getRGB(j, i));
double pixVal = (((col.getRed() * 0.30) + (col.getBlue() * 0.59) + (col
.getGreen() * 0.11)));
try {
asciiPrt.print(asciiChar(pixVal));
asciiPrt.print(asciiChar(pixVal));
asciiPrt.flush();
asciiWrt.flush();
} catch (Exception ex) {
}
}
try {
asciiPrt.println("");
asciiPrt.flush();
asciiWrt.flush();
} catch (Exception ex) {
}
}
}
}
// conversion table, there may be better out there ie https://www.billmongan.com/Ursinus-CS173-Fall2020/Labs/ASCIIArt
public String asciiChar(double g) {
String str = " ";
if (g >= 240) {
str = " ";
} else if (g >= 210) {
str = ".";
} else if (g >= 190) {
str = "*";
} else if (g >= 170) {
str = "+";
} else if (g >= 120) {
str = "^";
} else if (g >= 110) {
str = "&";
} else if (g >= 80) {
str = "8";
} else if (g >= 60) {
str = "#";
} else {
str = "@";
}
return str;
}
// tester/driver
public static void main(String[] args) throws IOException {
Pics monaLisa = new Pics("MonaLisa", "png");
// monaLisa.greyscale();
//monaLisa.redscale();
//monaLisa.greenscale();
monaLisa.bluescale();
// monaLisa.printStats("Original");
// monaLisa.resize(33);
// monaLisa.printStats("Scaled");
// monaLisa.convertToAscii();
Pics pumpkin = new Pics("pumpkin", "png");
// pumpkin.greyscale();
// pumpkin.redscale();
// pumpkin.greenscale();
pumpkin.bluescale();
// pumpkin.printStats("Original");
// pumpkin.resize(33);
// pumpkin.printStats("Scaled");
// pumpkin.convertToAscii();
}
}
Pics.main(null);
Results

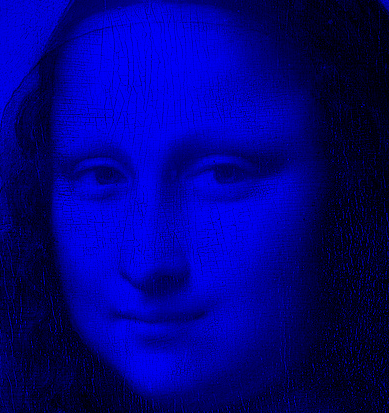

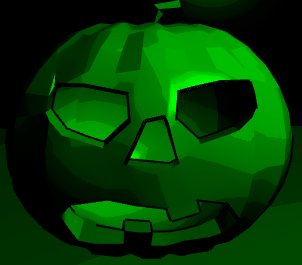

Different colorations
- I do have to acknowledge a technical limitation, which is that the red, blue, and green commands cannot be run at the same time as they cancel each other out. I cannot currently find a fix for it. If I do find a fix, I will implement it ASAP.

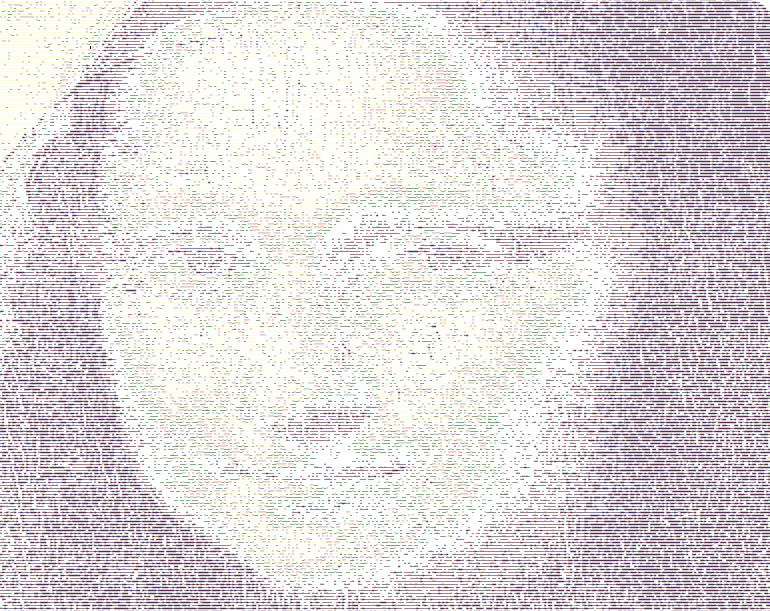

ASCII
- Mostly fixed issue of ascii stretching
Final Note
- Though this was pretty useful to figure out how imageIO worked, I don't see a particular use for it in the website about Kpop/Korean Culture
- The issue I see is that this image manipulation has to be done through the backend, which would make any sort of user input feel slow as they would have to wait for the page to refresh to display a changed version.
